4" 0.5HP/240V S-08 Submersible Bore Pump Package
SKU: EEP002
Tuhorse 4" Bore Pump – 0.5HP Power, 240V, Free Delivery.
Reliable 0.5hp Pump & Motor with optional Starter or Auto Control Box featuring 6 water sensors for automated water level management.
Suitable for 5" or larger bore wells, dams, or rivers
| Head (m) | 71 | 68 | 67 | 63 | 59 | 50 | 46 | 35 |
| L/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 |
Pairs well with
4" 0.5HP/240V S-08 Submersible Bore Pump Package
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Tech Specs
What's in the box and set up requirements
4" 0.5HP 240V/50Hz Motor
Tuhorse S-08/0.5HP Pump End

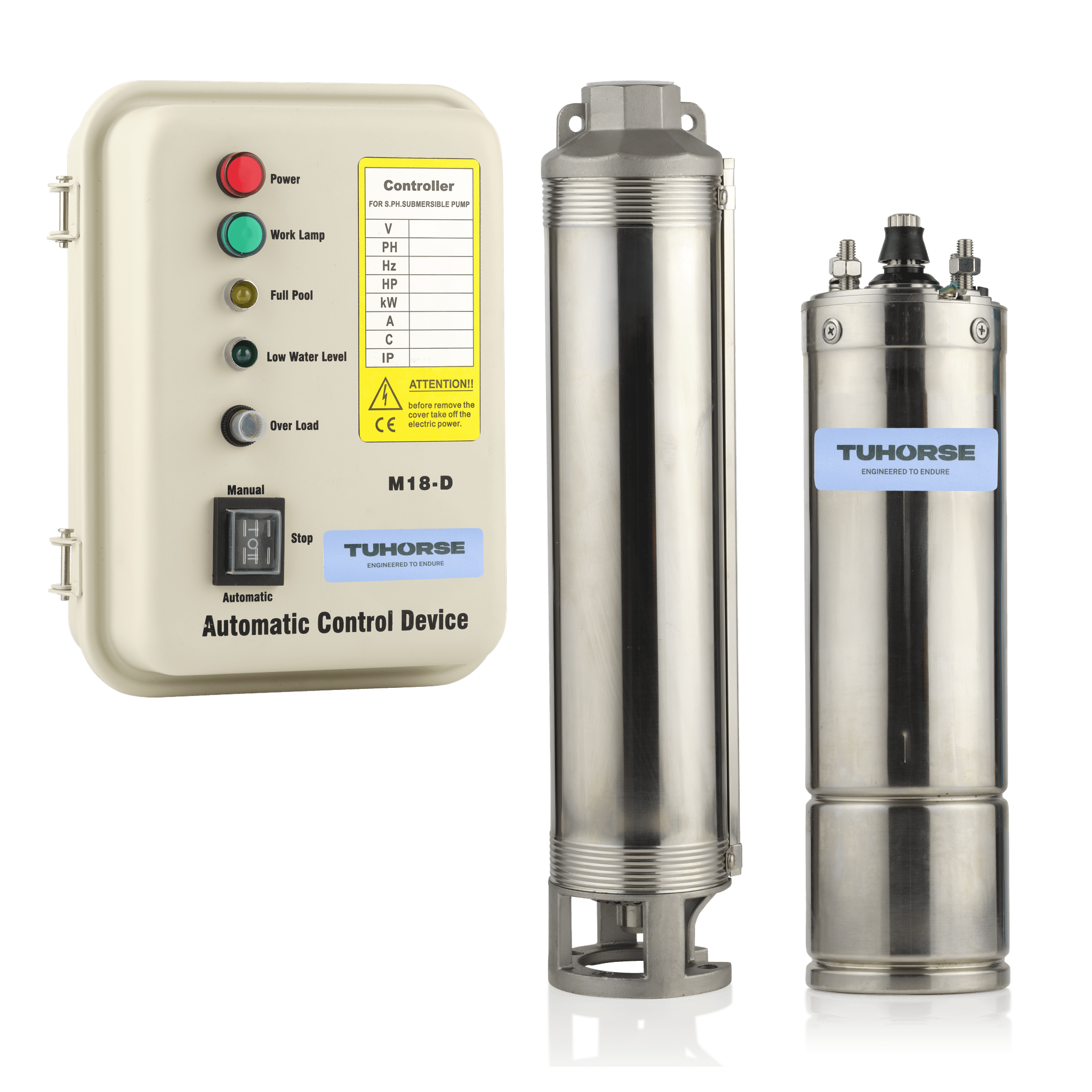

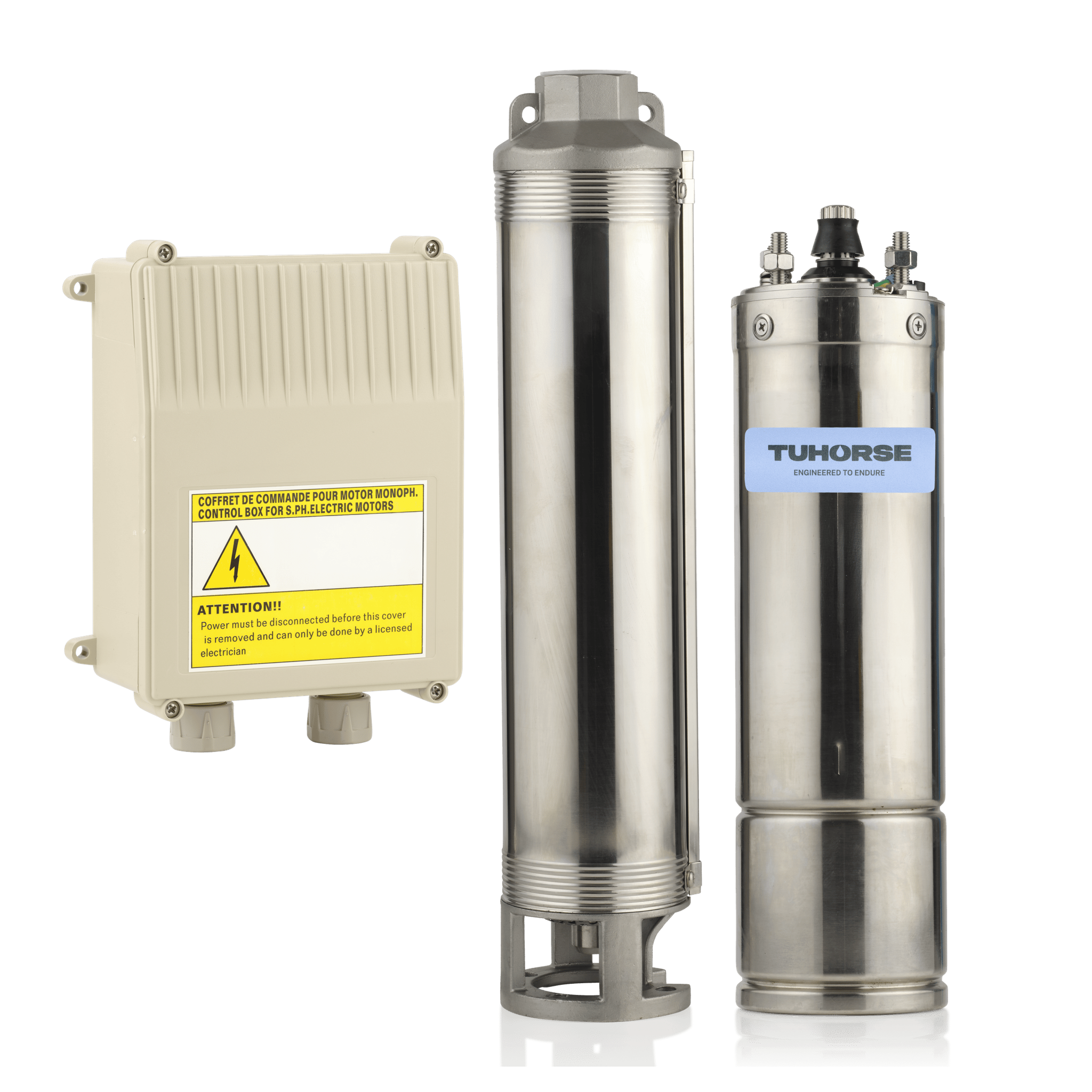

Available with a Starter Box or an Auto Control box
This pump should be installed by a certified Electrician
Why Choose This Pump?
The 0.5HP motor delivers reliable water flow for domestic, agricultural, or light commercial use. It operates on 240V/50Hz, ideal for standard Australian power systems.
Choose the Auto Control Box with 6 water sensors for intelligent water level detection. It automatically shuts off or restarts based on bore or tank levels-no manual monitoring needed.
Pump Specs
| Power: | 0.5HP/0.37kW |
| Model: | S-08 |
| Voltage : | Single Phase 240V/50Hz |
| Current: | 3.6A |
| Max Heads: | 71M |
| Max Flow: | 35L/min |
| Maximum Submersion depth: | 100m |
| Inlet/Outlet: | 1.25" |
| Weight: | 10kg |
| Pump Dimension: | 758mm x 100mm |
| Warranty: | 12 months return to base warranty in Australia |
Key System Components

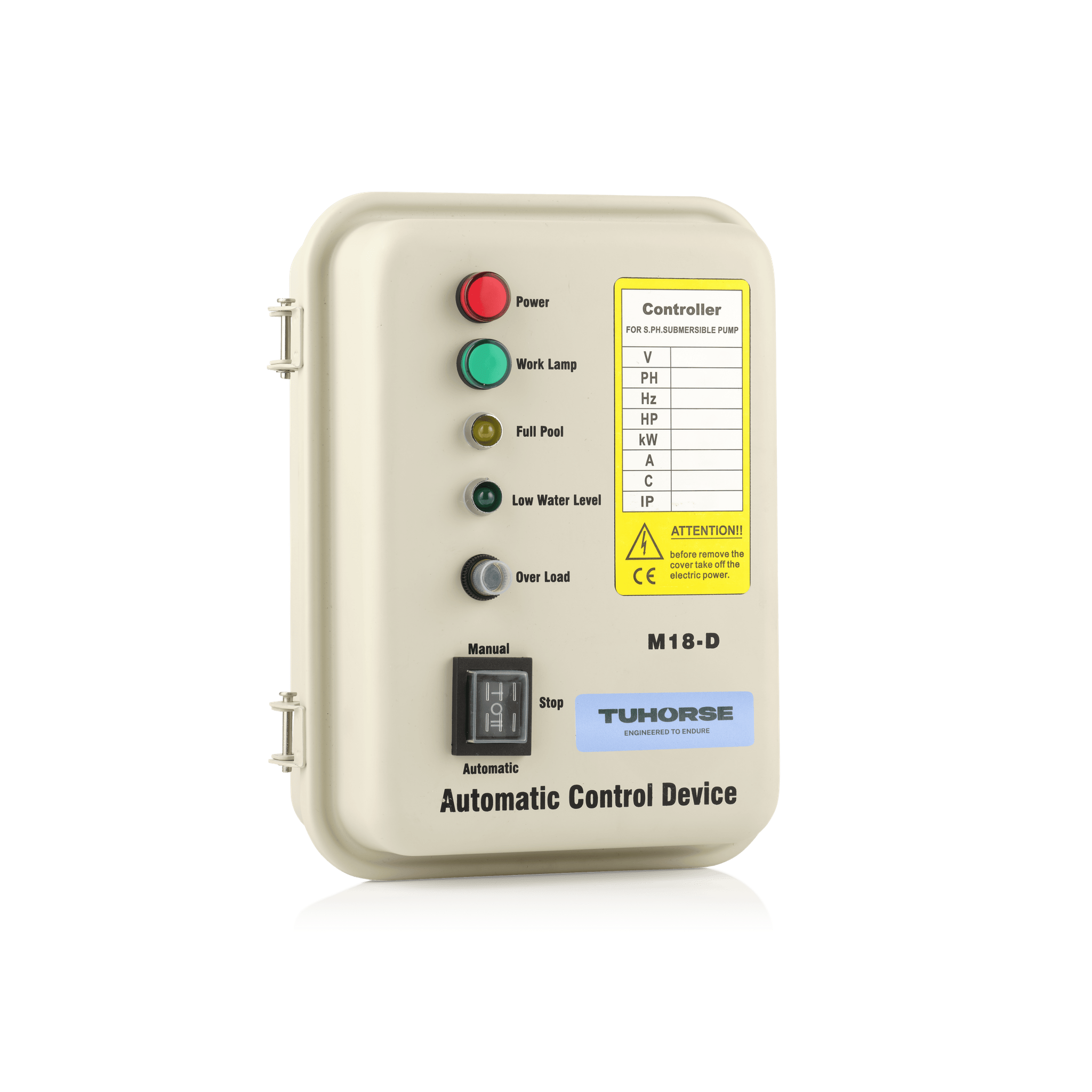

Auto Control Box Specifications
| Power: | 0.75HP/0.55kW |
| Voltage: | Single phase 240V/50Hz |
| Current: | 4.8A |
| Capacitor: | 25uf/450V |
| IP: | 54 |
| Water sensors voltage: | 10V-12V |
| Control Switch: | Auto/Manual |
This is an automatic control box for 240V/50Hz single phase submersible pumps. When the automatic control box is installed, the pump will turn on and off automatically according to the water levels of both the tank and the well. If you switch the box to manual, it can work like a starter box.
